| Description |
Value |
| frequency
range in MHz |
3,50
~ 60,0 |
| mode |
fundamental |
| mode |
3.
overtone |
| operating
temperature range in °C |
-20
~ +70 |
| operating
temperature range in °C |
-40
~ +85 |
| operating
temperature range in °C |
-40
~ +105 |
| frequency
tolerance at +25°C in ppm |
±10
~±50 |
| temperature
tolerance at -20° ~ +70°C in ppm |
±50 |
| temperature
tolerance at -40° ~ +85°C in ppm |
±100 |
| temperature
tolerance at -40° ~ +105°C in ppm |
±120 |
| capacity
load CL, standard in pF |
16 |
| capacity
load CL, available in pF |
12
~ 20 |
| series
resonance R1 3,5 ~ 3,99 MHz in Ohm max. |
150 |
| series
resonance R1 4,0 ~ 5,99 MHz in Ohm max. |
120 |
| series
resonance R1 6,0 ~ 7,99 MHz in Ohm max. |
80 |
| series
resonance R1 8,0 ~ 9,99 MHz in Ohm max. |
60 |
| series
resonance R1 10,0 ~ 40,0 MHz
fundamental in Ohm max. |
50 |
| series
resonance R1 35,0 ~ 39,99 MHz 3rd
overtone in Ohm max. |
100 |
| series
resonance R1 40,0 ~ 49,99 MHz 3rd
overtone in Ohm max. |
80 |
| series
resonance R1 50,0 ~ 70,0 MHz 3rd
overtone in Ohm max. |
50 |
| aging
(first year) in ppm |
±5 |
| shunt
capacitance Co in pF max. |
7,0 |
| drive
level in mW |
0,1 |

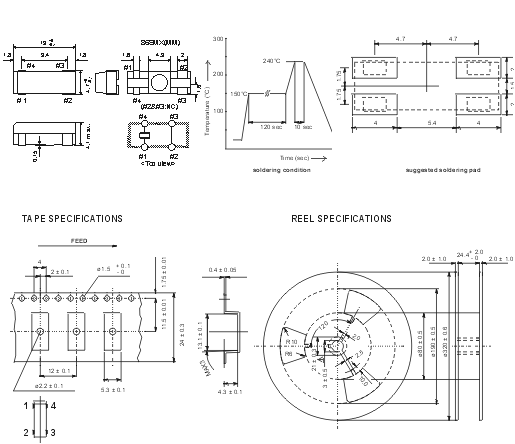

| size
l/w/h in mm |
13,0/4,7/4,1 |
| contents
of reel in pcs. |
1000 |
