| Description |
Value |
| frequency
range in MHz |
10,0
~ 300,0 |
| mode |
fundamental |
| mode |
3rd
overtone |
| mode |
5th
overtone |
| operating
temperature range in °C standard |
-20
~ +70 |
| operating
temperature range in °C available |
-40
~ +85 |
| operating
temperature range in °C available |
-40
~ +105 |
| frequency
tolerance at +25°C standard in ppm |
±30 |
| frequency
tolerance at +25°C available in ppm |
±10
~ ±50 |
| temperature
tolerance at -20° ~ +70°C stand. in ppm |
±50 |
| temperature
tolerance at -20° ~ +70°C avail. in ppm |
±10
~ ±50 |
| temperature
tolerance at -40° ~ +85°C stand.in ppm |
±100 |
| temperature
tolerance at -40° ~ +85°C avail. in ppm |
±20
~ ±100 |
| temperature
tolerance at -40° ~ +105°C stand.in ppm |
±120 |
| temperature
tolerance at -40° ~ +105°C avail. in ppm |
±30
~ ±120 |
| capacity
load CL, standard in pF |
16 |
| capacity
load CL, available in pF |
10
~ 20 |
| series
resonance R1 10,0 ~ 12,0 MHz
fundamental in Ohm max |
100 |
| series
resonance R1 12,1 ~ 16,0 MHz
fundamental in Ohm max |
80 |
| series
resonance R1 16,1 ~ 20,0 MHz
fundamental in Ohm max |
60 |
| series
resonance R1 20,1 ~ 50,0 MHz
fundamental in Ohm max |
40 |
| series
resonance R1 50,1 ~ 130,0 MHz
fundamental in Ohm max |
30 |
| series
resonance R1 70,0 ~ 300,0 MHz 3rd
overtone in Ohm max. |
80 |
| series
resonance R1 120,0 ~ 250,0 MHz 5th
overtone in Ohm max. |
80 |
| aging
(first year) in ppm |
±2 |
| shunt
capacitance Co in pF max. |
5,0 |

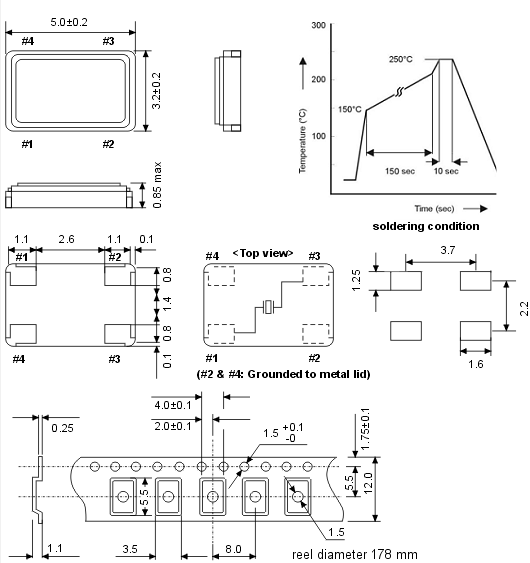

| size
l/w/h in mm |
5,0
/ 3,2 / 0,85 |
| lead-free |
yes |
| contents
of reel in pcs. |
1000 |
