| Description |
Value |
| frequency
range in kHz |
20,0 ~ 80,0 |
|
mode |
fundamental |
|
frequency tolerance at +25°C standard in ppm |
±30 |
|
frequency tolerance at +25°C standard in ppm |
±30 ~ ± 50 |
|
temperature tolerance at -20° ~ +70°C stand. in ppm |
±50 |
|
temperature tolerance at -20° ~ +70°C avail. in ppm |
±30 ~ ±50 |
|
temperature tolerance at -40° ~ +85°C stand.in ppm |
±100 |
|
temperature tolerance at -40° ~ +85°C avail. in ppm |
±30 ~ ±100 |
|
load capacitance CL,
standard in pF |
8 |
|
load capacitance CL,
available in pF |
8 ~ 16 |
|
series resonance R1 20,0 ~
30,0 MHz fundamental in Ohm max |
100 |
|
series resonance R1 30,1 ~ 80,0 MHz
fundamental in Ohm max |
80 |
|
aging (first year) in ppm |
±5 |
|
shunt capacitance Co in pF max. |
5,0 |
|
drive level µW max. |
5 |
|

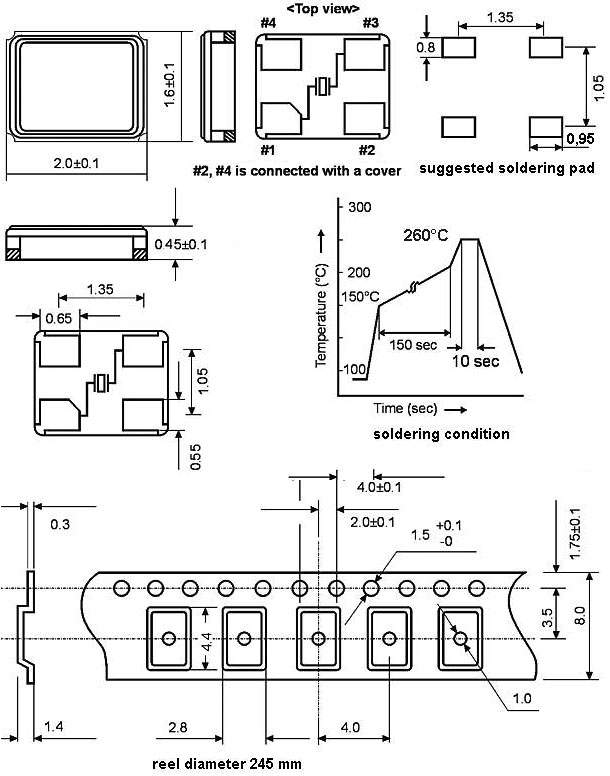

size l/w/h in mm |
2,0/1,6/0,45 |
|
RoHS since production start |
yes |
|
contents of reel in pcs. |
3000 |
