| ◆SPXO→CXO-18-665
1,80 ~ 66,50 MHz |
|
|
| Description |
Value |
| frequency
range in MHz |
1,80
~ 66,50 |
| frequency
stability at -20° ~ +70°C in ppm |
±50 |
| frequency
stability at -40° ~ +85°C in ppm |
±100 |
| operating
temperature range in °C |
-20
~ +70 |
| operating
temperature range in °C |
-40
~ +85 |
| storage
temperature in °C |
-40
~ +85 |
| symmetry
at ½ Vcc level in % |
50
± 10 |
| rise
& fall time in ns max. |
6 |
| "O"
level in V max. |
+0,4 |
| "1"
level Vcc in V min. |
-0,5 |
| input
voltage Vcc in V ± tolerance in % standard |
+
3,3 ± 10 |
| input
voltage Vcc in V / tolerance in % available |
+1,8
± 10 / +2,5 ± 10 / + 3,0 ± 10 |
| input
current in mA max. |
18 |
| output
load in pF |
20 |
| start
up time max. in ms |
10 |
| tristate
funcion |
yes |
| enable/disable
delay time in ns max. |
100 |
| reflow
soldering cond. at +240°C in seconds max. |
10 |

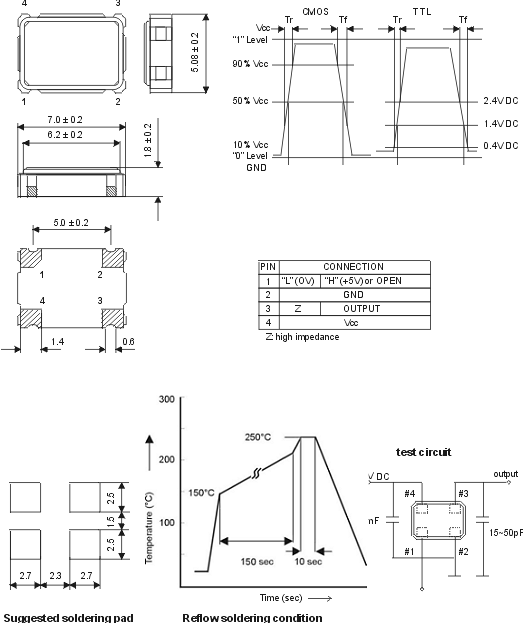

| size
l/w/h in mm |
7,0/5,08/1,8 |
| lead-free |
yes |
| contents
of reel in pcs. |
1000 |
|
|
|
|
|
|
